Electric Chain Hoist Manufacturer in Mumbai India

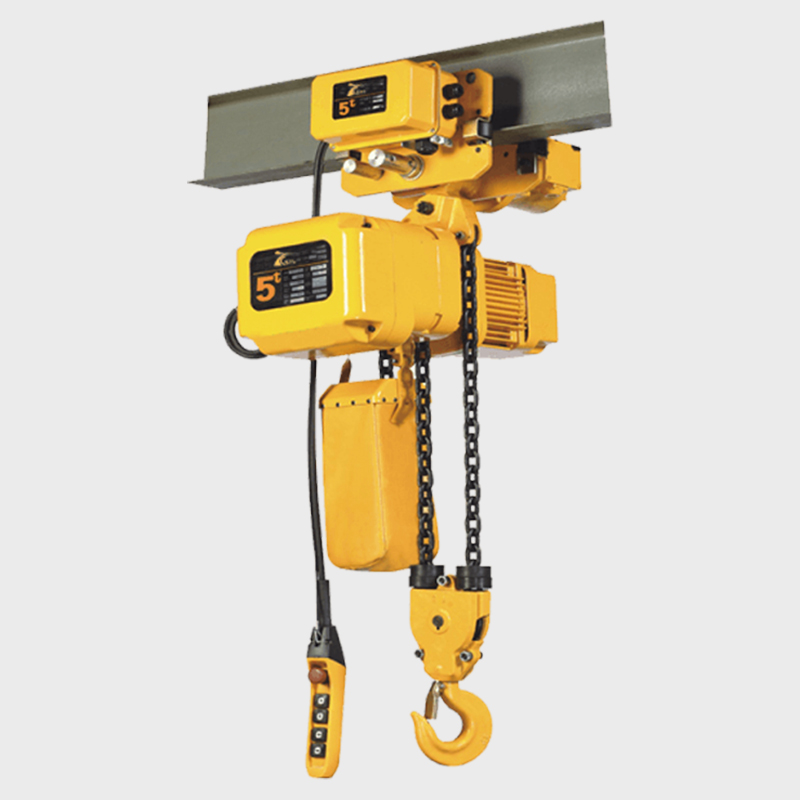

Name: ELEPHANT Electric Chain Hoist
Brand: ELEPHANT

A product of indigenous design & superior quality.

'ELEPHANT' BRAND ELECTRIC HOIST Are light in weight, have high efficiency, consume less power and are long lasting...

'ELEPHANT' Brand Chain Electric Hoist are designed for higher factor of safety. All components are precision made and assembled with great care by use of jigs and fixtures for noise less operation.

We are manufacturer of electric chain hoist engineered for smooth lifting & long-term durability across industrial applications in Mumbai, India.

LOAD WHEEL:
Steel cast, machine finished to suit load chain.
LOAD CHAIN:
Wear resistance, heat treated, grade 80 special alloy steel link Chain as per I. S. 6216.
GEARS:
Precision cut special steel spur gear with both the ends mounted on Ball Bearings for smooth operation.

BRAKES:
Disc type, spring loaded, brakes are provided for heavy duty operations. Brakes are of fail-safe type, which means in case of failure of electric supply brake acts immediately. Brakes are mounted on the non-driving end of the motor and are easily accessible.
HOOKS:Heavy duty steel forged hooks conforming to I.S. 8610 are supported on thrust bearings for free swivelling.
TROLLEY:It consists of M. S. side plates and trolley wheels are mounted on ball bearings for smooth running.
LIMIT SWITCHES:To prevent over-hoisting and over-lowering, limit switches are provided as a safety device.
ELECTRIC CONTROL PANEL: It consists of airbreak type direct on line, heavy duty reversing contractors low voltage transformer with fuse. If customer desires, overload relay can be provided at extra cost.

Products Range

PENDENT PUSH BUTTON: Robust heavy duty push button switch for operating at 110 volts is suspended from the hoist. Push button is provided with Wire Rope to prevent pull on cable.
RATING:
The Hoists are suitable for class II medium duty operations.
IMPROVEMENTS:our ENGINEERING DEPARTMENT continuously works on design improvment and we reserves the right of effecting any change found necessary without notice.
GUARANTEE:A GUARANTEE is provided for the repair and replacement, F.O.R. THANE, of any part which proves defective in material or workmanship within ONE YEAR of sale.
OTHER ELEPHANT PRODUCTS:Chain Pulley Block, Wire Rope Hoist, H. O. T. & E. O. T. Cranes, Jib Cranes, Floor Cranes, & Other Material Handling Equipments.

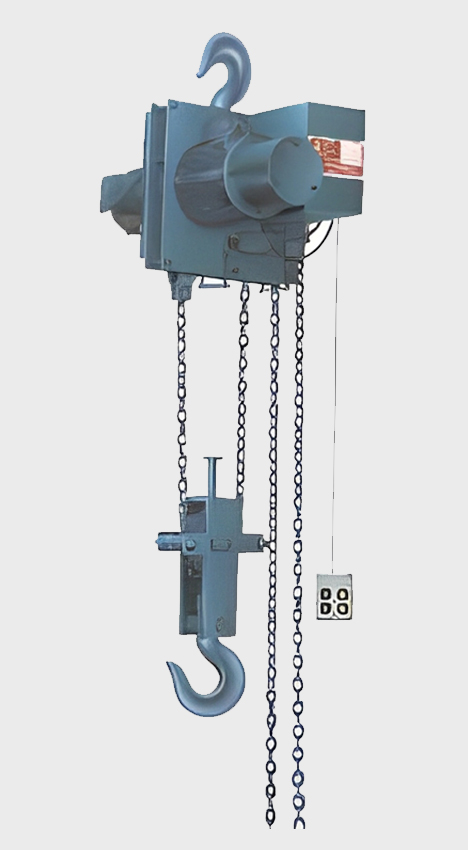

CHAIN ELECTRIC HOIST WITH Squirrel Cage motor or Conical rotor motor:
Capacity in Kgs	500	1000	2000	3000	5000	Capcity in Kgs. Dimension in m.m
Chain falls Nos.	2	2	2	2	2	cap	500	1000	2000	3000	5000
Grade	8	8	8	9	10	A	690	755	800	870	980
Hoist-speed mts/min	5.0	5.0	2.5	2.5	2.5	C	87	87	87	100	100
Hoist motor H.P.	1	1.5	1.5	3	5	D	425	465	465	565	600
Weight with chain for 3 mtrs lift (approx.) /in kgs.	73	82	87	115	130	E	210	210	210	265	280
Extra weight per additional Mts lift / in kgs	2.72	2.72	2.72	4.0	5.0

Frequently Asked Questions

(1.) What is an electric chain hoist?

An electric chain hoist is a lifting device that uses a durable metal chain to lift, lower, and move heavy loads.

(2.) What are the three types of chain hoists?

The three main types of chain hoists are: 1) Manual Chain Hoists 2) Electric Chain Hoists 3) Air/Pneumatic Chain Hoists

(3.) What is the difference between a chain hoist and an electric hoist?

A “chain hoist” is any hoist that uses a chain for lifting (manual or electric).
An electric hoist is any hoist that uses motor‑driven lifting machine that can be either wire‑rope or chain‑type.

(4.) What are the two main types of hoists?

The two main types of hoists are chain hoists and wire rope hoists.

(5.) What is an another name for a chain hoist?

A chain hoist is also called a chain block, manual chain block, or electric chain block.
