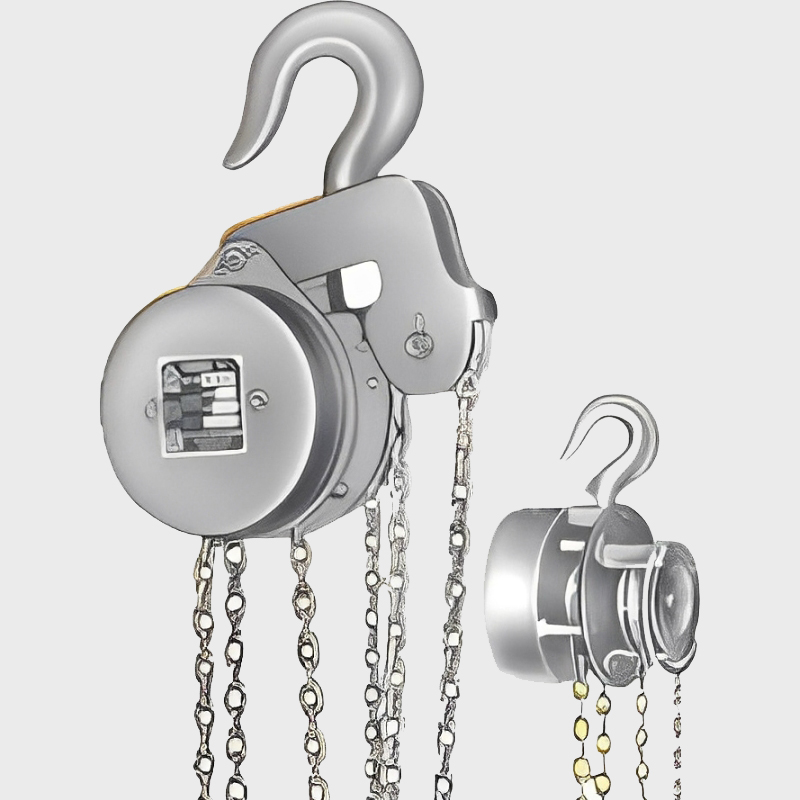

With Grade 80 Alloy Steel Chain (For 2 Tonne & Above) Capt. 0.5 Tonne To 40 Tonnes.
| I.S.I. Licence No. CM/L. 1606748. (0.5 Tonne to 10 Tonnes.) | |
|---|---|
| Load Wheel | : Steel Casting Mounted on two nos of Ball Bearings. |
| Gears | : All Gears are cut from Special steels and case hardened having full depth of addendum conforming to AGMA Standards. |
| Hooks | : Conforms to I.S. 8610 Grade P, Steel Forged to withstand, shock loads free to swivel under load. |
| Brakes | : Positively Self Acting at any load position, Screw and Friction Disc Type. |
| Mono Block | : With low Headroom Pulley Block of all the Capacities can be made & Supplied against specific requirements, fixed with Travelling Trollies. |
| Test | : Each Chain Pulley Block is tested at 50% overload as specified in I.S. 3832 and carries I.S.I. Mark. |
| Guarantee | : Our Chain Pulley Block carries Guarantee of one year from the date of sale against any parts which proves defective in material or workmanship Ex. Our Works Thane, |
| Other Products | : MANUAL OR ELECTRIC TROLLEYS, CHAIN & WIRE ROPE ELECTRIC HOISTS, H.O.T. E.O.T. CRANES, JIB CRANES, GOLIATH CRANES & OTHER MATERIAL HANDLING EQUIPMENTS. |
| Principal Dimensions in Millimeter (Approximate) | |||||||
|---|---|---|---|---|---|---|---|
| Capacity Tonnes | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.5 | 10.0 |
| A | 350 | 430 | 530 | 650 | 700 | 900 | 920 |
| B (Minimum) | 26 | 32 | 37 | 42 | 53 | 67 | 75 |
| C | 160 | 180 | 180 | 180 | 210 | 210 | 210 |
| D | 195 | 215 | 215 | 225 | 225 | 225 | 250 |
| E | 170 | 195 | 195 | 195 | 230 | 230 | 325 |
| Specifications (Subject to Change without Notice) (approximate) | |||||||
| Capacity in Metric Tonnes | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.5 | 10.0 |
| Number of Fall of Load Chain | 1 | 1 | 2 | 2 | 2 | 3 | 3 |
| Lift achieved by pulling 30 Mts. Hand Chain in Millimeter | 800 | 450 | 225 | 225 | 150 | 100 | 95 |
| Effort at full load in Kgs. | 18 | 20 | 20 | 30 | 35 | 35 | 42 |
| Weight at 3 Mtrs Lift in Kgs | 18 | 22 | 31 | 36 | 48 | 80 | 95 |
| Extra Wt in Kgs for every one meter for extra left | 2.4 | 2.4 | 3.8 | 3.8 | 5.0 | 7.0 | 11.2 |
A chain pulley block also known as a hand chain hoist is a manual lifting device that uses a chain to lift and lower heavy loads.
Our chain pulley blocks utilize Grade 80 Alloy Steel Chains (for 2 tonnes and above).
A triple geared chain pulley block uses a multi-gear mechanism to reduce manual effort and enable smooth lifting of heavy loads with better control.
Each Chain Pulley Block is tested at 50% overload capacity as per in I.S. 3832 standards and carries I.S.I. Mark.
Yes, chain pulley blocks can be used with manual or electric trolleys.
Yes, provide 1 year guarantee against defects in material or workmanship, excluding normal wear‑and‑tear.
